Question 1

Do you provide installation and maintenance services?

Accepted Answer

Absolutely. Warehouse Cubed delivers turnkey installation for racking, mezzanines, conveyors, automation, and safety systems. We also offer preventive maintenance, safety audits, and rapid repair services (including adjustable rack-repair kits) to keep your equipment compliant, reliable, and running at peak performance.

Question 2

Can you install racking we already own, or do we have to buy rack from you?

Accepted Answer

Yes. Our certified crews can install or reconfigure pallet racking you already own (as long as it passes a quick safety and compatibility check) so you never have to buy new rack from us unless it truly adds value. If code issues or gaps appear, we can reinforce, repair, or mix in matching rack as needed.

Warehouse Cubed’s warehouse consulting services and installation team will install the pallet racking you already own. We begin with a safety-first warehouse safety audit and quick rack inspection to confirm frames, beams, anchors, and decking meet current RMI/ANSI standards and local building codes. Once your equipment is cleared, our warehouse layout design engineers model the new aisle pattern, run load calculations, and prepare any permit drawings. Certified installers then anchor, shim, and plumb each bay so your operation goes live fast and stays compliant.

If we find bent uprights, missing hardware, or mismatched parts, you still keep control of the project. Options include on-the-spot pallet rack repair kits, sourcing compatible used parts, or blending in new pallet racking systems that match capacity and connection style, all without scrapping usable steel. Because the same crews also handle conveyor systems, safety equipment, and broader material handling systems integration, your existing rack can be folded into a larger warehouse optimization or automation upgrade without bringing in extra contractors.

Bottom line: you are never required to purchase rack from Warehouse Cubed. But when expansion or replacement makes sense, we can supply properly rated new or used racks, coordinate freight, and install everything so old and new rows function and look like one seamless, higher-density system.

Question 3

Can you phase a project so we start with layout/racking and add automation later?

Accepted Answer

Yes. Warehouse Cubed can phase your project by first completing a space-saving warehouse layout and installing the right pallet racking system, then adding conveyors, AS/RS, or other automation when you are ready. We design the initial infrastructure with future automation in mind, so the later upgrade is fast, budget-friendly, and minimally disruptive.

For this two-phase example, in Phase 1, our Layout & Design team creates a CAD model that maps traffic flow, pick zones, and safety aisles, then installs pallet racking systems, mezzanines, or modular in-plant offices to maximize storage density and meet code. All wiring, rack clearances, and load capacities are engineered up front to support Phase 2 automation.

When your budget or order volume calls for it, we move to Phase 2 without tearing out what you already paid for. Our material handling systems integration experts bolt in conveyor systems, goods-to-person robotics, or automated storage and retrieval systems (AS/RS) that plug directly into the racking installed earlier. Because power drops, network cabling, and WMS interfaces were preplanned, downtime is minimal and you avoid costly rework.

This phased approach lowers capital risk, lets you train staff in stages, and delivers quick wins in space utilization and safety before you invest in full warehouse automation solutions. Many e-commerce fulfillment centers, manufacturers, and 3PLs have used this strategy to scale smoothly while keeping operations running and customers happy.

Question 4

Do I need end-of-row protection on every aisle of my warehouse?

Accepted Answer

Yes—unless you can prove an aisle end faces no realistic impact risk, installing end-of-row guards is considered best practice and is often required by local building codes, rack manufacturers, or insurance carriers. Protecting every aisle dramatically reduces costly rack damage, downtime, and safety incidents caused by forklifts.

Forklifts hit rack ends more than any other part of a storage system. OSHA’s General Duty Clause and ANSI/RMI MH16.1 place responsibility on employers to keep racks safe, and most rack manufacturers void a warranty if uprights are unprotected. For that reason, end-of-row protection is recommended on every aisle where powered industrial trucks operate, especially high-traffic pick tunnels and cross-aisles—because a single upright failure can trigger a costly domino collapse.

The only exceptions are rows that face a wall or restricted pedestrian zone with no vehicle access. Even then, safety auditors still advise installing inexpensive post protectors because operators and pallet jacks can stray off course. During a Warehouse Cubed warehouse safety audit, our engineers map traffic patterns, identify high-risk rack ends, and specify the right guard style (bolt-on steel wraps, low-profile rack armor, or heavy-duty guardrail systems) to meet ANSI, NFPA, and local code requirements.

Adding universal end-of-aisle guards typically pays for itself after preventing just one impact repair. Clients who combined guards with our pallet rack repair kits and routine rack inspections have reported fewer damage claims and unplanned shutdowns. If you’re unsure what your facility needs, request a consult from our warehouse optimization team; we’ll design, supply, and install end-of-row protection that keeps your pallet racking systems, inventory, and people safe while supporting future warehouse automation solutions.

Question 5

Do I need wire decking or pallet supports, and how do I size them correctly?

Accepted Answer

Choose wire decking when you handle loose cartons, mixed SKUs, or need fire-code water flow and easy visual checks. Select pallet supports when every load rests on sound pallets and you only need extra bearing bars. In either case, match depth to rack frames, width to beam length, and meet the highest load rating with two supports per pallet.

Warehouse optimization starts with choosing the right shelf surface for your pallet racking systems. Wire mesh decking and welded-steel pallet supports both reinforce selective racks, yet they solve different problems. Wire decking creates a full shelf that catches broken pallets, allows sprinkler water flow, boosts airflow and visibility, and lets you store cartons or loose SKUs. Pallet supports are two or more bars that bridge the beams; they cost less and keep forklift access clear but only work when every load sits on a consistent, good-quality pallet.

Sizing steps:

1. Depth: match the rack frame depth—most U.S. racks are 36″, 42″ or 48″. A 42″ frame gets a 42″ deep wire deck or 42″ pallet support.

2. Width: wire decks are sold to fit clear beam length (e.g., two 46″ decks for a 96″ beam or three 46″ decks for a 144″ beam). Pallet supports should overhang the step or box beam about 1″ per side and be tek-screwed or clipped in place.

3. Capacity: choose a deck or support rating that meets or exceeds the heaviest uniformly distributed pallet load, typically 5,000–6,000 lb per pair of beams with pallet weights of 2,000 – 2,500 lbs; increase gauge or channel count for point loads.

4. Quantity: use at least two pallet supports per pallet position—add a third for heavy, weak, or nonstandard pallets.

Warehouse Cubed’s warehouse consulting services can verify load data, conduct rack inspections, and integrate the right material handling systems, supplying wire decking, flanged or hat-style pallet supports, and other industrial storage solutions that keep your operation safe, compliant, and ready for growth.

Question 6

Do pallet racks require seismic calculations or stamped engineering drawings?

Accepted Answer

Yes, most building departments require pallet rack installations to be designed for local seismic forces and submitted with engineer-stamped drawings when you pull a permit. Warehouse Cubed provides the necessary load calculations, seismic analysis, and sealed plans so your rack system meets IBC and ANSI/RMI MH16.1 and passes inspection.

Under the International Building Code (IBC) and ANSI/RMI MH16.1, pallet racking systems taller than roughly 8–12 ft or supporting more than 500 lb per shelf are classified as structural storage. That means the local authority having jurisdiction will ask for a building permit, full load calculations, and construction documents stamped by a professional engineer licensed in that state. The calculations must prove beam, column, and anchor capacities, and show that the rack will remain stable under site-specific seismic accelerations derived from ASCE 7 (Ss, Sds) as well as wind or snow loads.

Warehouse Cubed’s warehouse consulting services make the process painless. Our team measures every bay, gathers product weights, and pulls your site coordinates to run seismic analysis in RISA and AutoCAD. We then produce engineer-sealed drawings (often called LARCs) that include base-plate sizes, anchorage patterns, and pallet load charts so you can secure a permit the first time.

During installation we integrate protective guarding, label load capacities, and (when requested) can follow up with optional annual warehouse safety audits for ongoing compliance. Our warehouse layout design expertise ensures the rack footprint aligns with lift-truck aisles, pick zones, and future distribution center optimization goals.

By combining rack design, material handling systems integration, and warehouse optimization in one package, we protect your people, product, and budget—preventing costly red-tag shutdowns or insurance issues while maximizing storage density and throughput.

Question 7

Do you offer pallet rack installation services, and what do you need to quote it?

Accepted Answer

Yes. Warehouse Cubed provides turnkey pallet rack installation nationwide. To give you an accurate quote we’ll ask for your facility address, clear height, floor‐slab rating, desired rack style and pallet count, product weights, a basic layout or CAD drawing, and a target timeline. A free phone consultation gathers these details quickly.

As part of our warehouse consulting services, Warehouse Cubed supplies, engineers, and installs pallet racking systems—from selective and push-back to drive-in and cantilever rack. Because every project is unique, our quoting checklist focuses on the information that drives cost, speed, and compliance. Send us the following information for the most accurate quote:

1. Facility facts: site address, square footage, clear ceiling height, concrete-slab thickness, sprinkler or seismic zone, and access hours.

2. Storage goals: pallet dimensions, average and maximum load weight, SKU mix, throughput targets, and growth plans.

3. Rack preferences: type, number of pallet positions, bay width and depth, beam levels, accessories, or whether you need guidance from our warehouse optimization specialists.

4. Drawings: a simple sketch, PDF floor plan, or existing CAD file lets our warehouse layout design team create a space-efficient model in hours.

5. Project timing: desired install window, shift schedules, and any shutdown constraints.

Once we receive these details our engineers prepare CAD layouts, load calculations, and a fixed-price proposal covering material, freight, professional installation, and optional pallet rack repair or ongoing maintenance. The result is a safer, denser, future-ready warehouse completed with minimal downtime.

Question 8

Do you provide pallet rack teardown services for lease exits and tight move-out deadlines?

Accepted Answer

Yes. Warehouse Cubed’s Rack Systems team provides complete pallet rack teardown and removal services nationwide. We plan, label, dismantle, band, and load your racking on schedule, haul away scrap, and leave the space broom-clean—meeting lease-exit requirements even on tight, time-critical move-outs.

Pallet rack dismantling is often the last thing standing between you and a returned security deposit. At Warehouse Cubed we combine warehouse consulting services, pallet racking systems expertise, and OSHA-compliant safety practices to remove your racking quickly and safely. Our experienced crews begin with a fast site survey and a written timeline that aligns with your move-out date. Each upright and beam is numbered, photographed, and bundled so it can be sold, stored, or reinstalled at your new distribution center.

During teardown we isolate work areas, use certified lift equipment, and follow ANSI/RMI guidelines to prevent accidents. Anchors are hammered flush and the floor swept so property managers can sign off without delays. If you plan to reuse the material, our material handling systems integration team can redesign the layout, provide warehouse layout design drawings, and schedule reinstallation.

Because Warehouse Cubed also delivers pallet rack repair, buy-back of used racking, and warehouse safety audits, you get one accountable partner instead of juggling multiple contractors. Visit our Rack Systems and Repairs pages to learn more. The result is a stress-free decommission that protects your budget, your people, and your reputation while keeping you on track for a clean lease exit.

Question 9

Do you sell new and used pallet racking, and can you bundle material and labor into one quote?

Accepted Answer

Yes. Warehouse Cubed stocks both new and carefully inspected used pallet racking from trusted brands. We can combine rack material, design help, and professional installation labor into one easy quote, giving you clear pricing and a single point of contact from purchase through final safety check.

Whether you are expanding a facility or replacing damaged uprights, Warehouse Cubed has a wide range of pallet racking systems to match your budget and timeline. Choose from factory-fresh selective, push-back, or drive-in racks, or opt for our certified used components that are structurally inspected and cleaned before they reach your dock. For busy fulfillment centers and growing manufacturers alike, buying used can free up capital without sacrificing load capacity.

We make the buying process simple. After a free assessment, our warehouse optimization and consulting team designs the layout, calculates capacities, and lists every upright, beam, deck, and anchor you will need. That bill of material is bundled with turnkey labor (delivery, unloading, anchoring, shimming, and final torque checks) so you receive one transparent quote and one purchase order. No surprise extras, no juggling multiple vendors.

Because we manage both material procurement and installation, schedules stay tight and responsibilities are clear. Our OSHA-trained crews install racking to RMI standards, verify plumb and level, and place load-rating labels before turning the project over to your team. If you ever need relocations, pallet rack repair kits, or safety audits, we already know your system and can step in fast.

By choosing a single-source partner for material and labor, you cut paperwork, shorten lead times, and gain a safe, code-compliant storage solution built for future growth.

Question 10

How do I choose the right used pallet rack uprights or frames?

Accepted Answer

Verify capacity, height, and hole pattern; inspect for damage or rust; and match load requirements before buying any used pallet rack upright or frame. Measure column depth, gauge, and beam connector style so components stay compatible. Warehouse Cubed’s used pallet rack equipment is always inspected and certified for safe reuse.

Pallet racking systems only perform safely when every upright is sized and rated for your application, even if it is a bargain on the secondary market. Begin with precise data: pallet size, load weight per level, lift-truck clearances, seismic zone, and overall clear height of the building. Match these numbers to the frame’s published capacity chart; if the tag is missing, Warehouse Cubed can calculate the load and label the frame correctly.

Next, confirm compatibility. Measure the column depth (usually 36–48 inches), gauge of steel, and the connector style—such as teardrop, keystone or structural bolted. Mixing brands that have similar punch patterns can lead to loose beam connections, so keep to one manufacturer or let our material handling systems integration team supply adapter clips.

Inspect condition. Reject frames that show twists, cracked welds, or more than 1/8-inch column deflection. Surface rust is cosmetic, but deep pitting, bent baseplates, or enlarged anchor holes reduce capacity. Our pallet rack repair kits restore minor forklift damage and bring uprights back to RMI compliance at a fraction of replacement cost.

Finally, think ahead. If future SKU growth or automation is likely, select frames tall enough for another beam level and anchor points that accept rack safety equipment. With Warehouse Cubed’s warehouse optimization experts, you can source vetted, refurbished frames from trusted brands, or design a hybrid system that blends used uprights with new beams—saving capital today while safeguarding productivity for years.

Question 11

How do weight capacity ratings change the cost of pallet racking?

Accepted Answer

Weight capacity is the biggest cost driver in pallet racking. Higher load ratings demand thicker-gauge steel, deeper uprights, heavier beams, extra bracing, seismic-rated anchors, and third-party engineering stamps—all of which raise material, freight, and installation costs. Lighter-duty racks use less steel and simpler hardware, keeping prices lower.

Weight capacity directly influences every component of a pallet racking system and your final invoice. To support heavier pallets, manufacturers step up from economical 14-gauge roll-formed uprights to 12- or 10-gauge, switch from open-back columns to fully boxed posts, and specify taller, wider step-beams. Each upgrade adds pounds of steel, which is the single largest cost input. You may also need structural (hot-rolled) rack for loads above roughly 20,000 lbs per bay; the added mass and fabrication time can double or even triple material price compared with standard selective rack.

Higher capacities trigger other expenses. Engineers must calculate deflection limits, seismic forces, and point loads, often providing PE-stamped drawings for code approval. Extra cross-bracing, heavy-duty footplates, and chemical anchors lengthen installation labor. Freight surcharges apply because a truck that once held 40,000 lbs of light rack may max out at 25,000 lbs of heavy rack.

Working with Warehouse Cubed’s warehouse consulting services team helps you buy only the strength you actually need. We analyze load data, warehouse layout design, and future growth to match the right pallet racking systems with your workflow, then optimize aisle spacing so you recover floor space instead of overspending on steel.

Question 12

How long does pallet rack installation typically take?

Accepted Answer

Most standard pallet rack installs take just a few days. A single-row selective rack project in a 10,000-sq-ft warehouse can be finished in one to three days, while a multi-aisle, high-density system may run one to two weeks. Accurate design, permitting, and material availability set the pace.

Installation time hinges on three factors: scope, site readiness, and permits. Warehouse Cubed begins with a warehouse assessment and CAD layout to confirm column lines and anchor points, so crews are not guessing on-site. For a small selective pallet racking system (for example, 150–300 pallet positions) our team can tear out old racks, place uprights, drop in beams, anchor, level, and safety check everything in roughly 1–3 working days. Medium projects (for example, 500–1,500 positions) normally wrap up in 3–5 days, and large high-density builds or multi-level pick modules may stretch to 1–3 weeks because of lift equipment, catwalks, and fire-code inspections.

To keep your operation moving, we often stage materials off-site and schedule work at night or over a weekend. Our turnkey service includes permitting support, rack load-capacity signs, and a post-install safety audit, so once the last beam is clipped you can start storing product immediately.

If you are replacing damaged uprights, our rack repair kits install in about 30 minutes each, with no need to unload pallets, further minimizing downtime.

Explore our full pallet racking solutions and speak with our warehouse consulting services team for a precise timeline tailored to your facility.

Question 13

How often should warehouse racks be inspected for damage?

Accepted Answer

Warehouse racks should get a quick visual check every shift, a documented supervisor walk-through at least once a month, and a full professional inspection every 6-12 months—or immediately after any forklift impact or layout change—to stay ahead of OSHA safety rules and keep your inventory, people, and equipment protected.

Warehouse consulting services agree that consistent rack inspections are the backbone of warehouse safety and efficiency. OSHA sets no fixed timetable, but the ANSI/RMI MH16.1 standard—and Warehouse Cubed’s own warehouse safety audits—recommend a tiered program:

– Daily/shift checks by lift drivers for obvious bends, missing anchors, or loose beams.

– Monthly supervisor walkthroughs that verify capacity labels, protectors, and rack plumb.

– Comprehensive annual (or semi-annual in high-volume, cold-storage, or seismic zones) inspections by a qualified professional such as Warehouse Cubed.

This cadence catches minor damage before it grows into a costly collapse, keeps you compliant during OSHA visits, and extends the life of your pallet racking systems. When Warehouse Cubed performs the yearly audit, we document every deficiency, rank it by severity, and provide fast, code-compliant repairs using OEM components directly from the manufacturer. Our technicians can also integrate protective guarding, end-of-aisle barriers, and smart safety sensors as part of a wider warehouse automation solution.

Pairing routine checks with expert service helps you avoid unplanned downtime, protect employees, and maintain an efficient material handling systems integration that supports growth.

Question 14

What are OSHA requirements for warehouse rack inspections?

Accepted Answer

OSHA requires employers to keep pallet racks "safe for the intended load" under the General Duty Clause and 29 CFR 1910.176(b). That means inspecting racks regularly, documenting damage, correcting hazards promptly, and bringing in a qualified person after any impact, redesign, or seismic event. Most facilities follow ANSI/RMI MH16.1: at least one detailed, expert inspection per year. Disclaimer: The information on this page is provided for general informational purposes only and does not constitute legal or regulatory advice. While we strive for accuracy, OSHA rules and enforcement guidance can change — you should confirm current requirements and interpretations directly with the Occupational Safety and Health Administration (OSHA) or consult a qualified safety professional or attorney to ensure compliance and avoid penalties.

Unlike forklifts or cranes, pallet racks have no fixed OSHA timetable—but the agency can cite you for unsafe storage under 29 CFR 1910.176(b) and the General Duty Clause. To prove due diligence, OSHA expects a written pallet rack inspection program that:

1) Assigns a “competent person” to perform routine visual checks (often weekly)

2) Documents each location, type, and severity of damage

3) Locks out or unloads any rack that exceeds allowable deflection or has missing components

4)Calls in a “qualified” rack professional after a collision, load change, reconfiguration, or seismic event.

ANSI/RMI MH16.1, the industry standard OSHA references during investigations, adds that a comprehensive, expert audit should occur at least annually and that repaired or replaced parts must match the original manufacturer’s specifications.

Warehouse Cubed simplifies compliance by pairing warehouse safety audits with detailed rack inspections and repair services. Our veteran-led team assesses your situation and supplies turnkey remediation, whether that’s engineered pallet rack repair kits, replacement components from Interlake Mecalux or North American Steel, or protective guarding to prevent repeat hits. The result is a safer facility, lower risk of costly OSHA fines, and peace of mind that your storage systems meet today’s warehouse safety standards while supporting future growth.

Question 15

What is teardrop pallet racking and why is it so common?

Accepted Answer

Teardrop pallet racking is a selective rack whose uprights have tear-shaped slots; beams drop in tool-free on 2-inch centers so parts from most brands interchange. Because it installs fast, is widely stocked new and used, and reconfigures easily, it has become the default pallet-rack style across North America.

Teardrop pallet racking is the most common roll-formed selective rack in the United States. The upright frames are punched with upside-down teardrop slots on two-inch centers. Beams have tapered studs that drop in, lock automatically, and can be moved with no tools. Because nearly every major manufacturer—Interlake Mecalux, Unarco, and others—uses the same hole pattern, parts are interchangeable. You can explore options on our Pallet Rack Systems solutions page. That universal fit delivers three big advantages:

1. Lower cost of ownership – mix new, used, or refurbished components and source replacements fast.

2. Speedy installation and reconfiguration – boltless connections let your team or a Warehouse Cubed crew adjust beam levels in minutes.

3. Broad accessory support – wire decks, pallet supports, safety bars, and pick-zone add-ons all snap into the same slots.

When you partner with Warehouse Cubed, our warehouse consulting services start with warehouse layout design and warehouse optimization modeling. We supply high-quality teardrop frames, beams, and decking, integrate them with conveyor or automated storage and retrieval systems as part of complete material handling systems integration, and back everything with rack safety audits and pallet rack repair kits. The result is a space-saving, code-ready storage solution that scales with your operation and supports future warehouse automation solutions.

Question 16

What is the ideal aisle width for reach trucks vs forklifts?

Accepted Answer

Reach trucks usually need 8.5–10-ft wide aisles, while standard counterbalanced forklifts work best in 12–14-ft aisles. Choosing the tighter reach-truck layout boosts storage density but demands clear sight lines and good floor conditions. For forklifts, wider aisles allow safer turns and faster two-way traffic.

Warehouse layout design starts with the space between racks. For reach trucks, an 8.5- to 10-foot clear aisle lets the mast extend and retract without the wide swing of a counterbalanced chassis. This narrow-aisle approach can add 20-30 percent more pallet positions, making it popular in high-volume e-commerce facilities where every inch matters.

Conventional forklifts, by contrast, need about 12–14 feet to turn, tilt, and travel past oncoming traffic. The extra width improves visibility and reduces rack impact risk, which our warehouse safety audits show is a leading cause of unplanned downtime.

When Warehouse Cubed’s warehouse consulting services team models a new storage layout, we compare equipment specs, load size, and pick velocity to balance density and flow. If you want to shrink aisles for reach trucks, we often pair them with higher pallet racking systems, wire-guided paths, and floor flatness testing to keep operators efficient and safe. Where wider forklift aisles remain necessary, such as staging heavy outbound loads, we create hybrid zones, add protective guarding, and mark clear travel lanes.

The result is a material handling systems integration plan that maximizes cube utilization today while leaving room for future automation like automated storage and retrieval systems. Visit our Layout and Design page to learn more about how we can support your business.

Question 17

What measurements do I need to match teardrop beams to existing uprights?

Accepted Answer

To match new teardrop beams to your existing uprights, measure six things: 1) vertical hole pitch and slot shape, 2) column depth and face width, 3) lug spacing on the original connectors, 4) clear inside-to-inside beam span, 5) beam face/step size, and 6) required shelf capacity rating.

Start by confirming the upright hole pattern—a quick warehouse optimization check. On most roll-formed “universal” or “teardrop” frames the slots repeat every 2.0 inches, but older rack sometimes use 3-inch or offset spacing. Place a tape against one column flange and note the center-to-center distance between three consecutive holes; this figure must match the vertical lug spacing on the replacement beam connector.

Next note the slot profile. A true teardrop opening has a ½-in. round top that narrows to roughly 3⁄8-in. in the neck. If the neck is wider or squared, you may be dealing with an Interlake New Style, Ridg-U-Rak “slotted,” or another proprietary pattern and the beam must come from that manufacturer.

Measure the column depth (front-to-back) and width (left-to-right across the face) so the connector plates seat flush without twisting. Then record:

Clear span between inside faces of opposing uprights—this is the beam length you will order.
Beam face height and step depth (for step beams) to hold wire decking or pallet supports.
Desired load capacity, because two beams working as a pair must support the shelf without exceeding either the beam or upright rating.

If any dimension is uncertain, Warehouse Cubed’s warehouse consulting services team can perform an on-site rack audit, match compatible pallet racking systems from Interlake Mecalux or Unarco, and integrate the beams into a broader material handling systems integration plan—complete with pallet rack repair, safety audits, and future-ready warehouse automation solutions.

Question 18

What pallet rack beam size (96” vs 144”) is most cost-effective?

Accepted Answer

For many facilities, 96-inch beams are the lowest-cost option because they use lighter steel and fit the standard two-pallet layout. A 144-inch beam can cut cost per pallet in long, light-load runs, but heavier steel and decking usually offset the savings.

In pallet racking systems, choosing the most cost-effective beam length comes down to the trade-off between component price and pallet density. In most projects we design, an eight-foot (96 in.) beam wins on installed cost because it fits two standard 40 x 48 in. pallets with 3–4 in. clearance; uses lighter roll-formed steel, so the beam and connectors are cheaper; pairs with standard 3 in. uprights, lowering frame price and freight; and keeps deflection within the L/180 rule without extra center supports.

A twelve-foot (144 in.) beam holds three pallets, letting you eliminate every third upright and add density. If each pallet is under about 2,500 lb, cost per pallet position can be reduced and you gain more pick faces. The catch: longer beams need deeper or thicker profiles, heavier uprights, and wire decking with extra crossbars. These costs may cancel or reduce the savings unless you have long, continuous runs.

Our warehouse consulting services model both options in a complete layout, considering load weight, SKU velocity, aisle width, and future growth. This insight powers broader warehouse optimization and material handling systems integration, ensuring your rack system balances price, safety, and throughput.

Whether you pick 96 or 144 in. beams, Warehouse Cubed supplies the right steel, handles installation, and provides ongoing rack inspections and repair to protect your investment.

Question 19

What should I look for when buying used uprights or used frames?

Accepted Answer

Check that used uprights or frames are straight, rust-free, and have intact bracing; verify the column depth, hole pattern, and steel gauge match your beams; confirm load capacity from the original manufacturer; and always have a qualified provider like Warehouse Cubed review any used materials before installation.

Used pallet-rack uprights (also called frames) can save money, but only if they are safe and compatible with your material-handling system.

1. Structural condition – Sight down each column for bowing, twists, cracked welds or missing horizontal/diagonal braces. Push-pin holes should be round, not elongated, and base plates must be firmly attached.

2. Capacity documentation – Ask for the original manufacturer’s data sheet that lists frame load ratings by unsupported height. Without it, you cannot prove OSHA or RMI compliance. Warehouse Cubed offers warehouse safety audits to verify capacities and supply stamped calculations when needed.

3. Compatibility – Measure depth, column face width and hole style (teardrop, keystone, structural bolt-up, etc.) to be sure the frames accept your existing beams and decking. Mixing styles reduces capacity and slows future warehouse optimization.

4. Future layout – Make sure the frames fit the clear height, seismic zone and lift-truck aisle design in your warehouse layout. Our warehouse consulting services can model new and refurbished racking in CAD so you know every position will work before you buy.

5. Hidden costs – Calculate cleaning, repainting, hardware, anchors and freight. Sometimes a refurbished frame or a quick rack-repair kit costs less than repeated downtime.

When you partner with Warehouse Cubed for pallet racking systems and material handling systems integration, we inspect, rate and recondition every used upright so you get a cost-effective, code-compliant storage solution you can trust.

Question 20

What site prep is required before the pallet rack installation crew arrives (dock access, power, clear floor, dumpsters)?

Accepted Answer

Ensure a smooth pallet rack installation by providing unobstructed dock access for delivery trucks, a clear, level floor in the rack area, and 120-volt power for installation tools. Remove existing racks or inventory, mark sprinkler lines overhead, and arrange on-site dumpsters for packaging debris and any rack demolition waste.

Proper site preparation keeps your project on schedule and protects your budget. At Warehouse Cubed, our warehouse consulting services start by reviewing these key readiness items before our pallet racking systems crew rolls in:

1. Dock and path clearance: Confirm that the receiving dock can accept a long trailer and that an open, forklift-friendly route exists from dock doors to the install zone. This avoids costly hand-carrying or re-handling of heavy rack components.

2. Power and lighting: Supply at least one 120-volt, 20-amp circuit in the work area. Verify that existing lighting is bright enough for safe assembly or schedule temporary lights.

3. Floor condition: Sweep, repair spalls, and remove anchors from any prior racks so installers can shoot new anchors accurately. A level, debris-free slab speeds layout and meets seismic specs called out in your warehouse layout design.

4. Clear staging space: Relocate inventory, pallets, and forklifts so installers have a minimum 10-ft wide aisle to stage uprights, beams, and wire decking. If you’re replacing racks, schedule a phased teardown so half the floor stays open.

5. Waste management: Position an empty dumpster or compactor for cardboard, plastic wrap, and scrap steel.

Completing these steps lets our material handling systems integration team finish faster, lowers safety risks, and gets your distribution center back to full productivity sooner.

Question 21

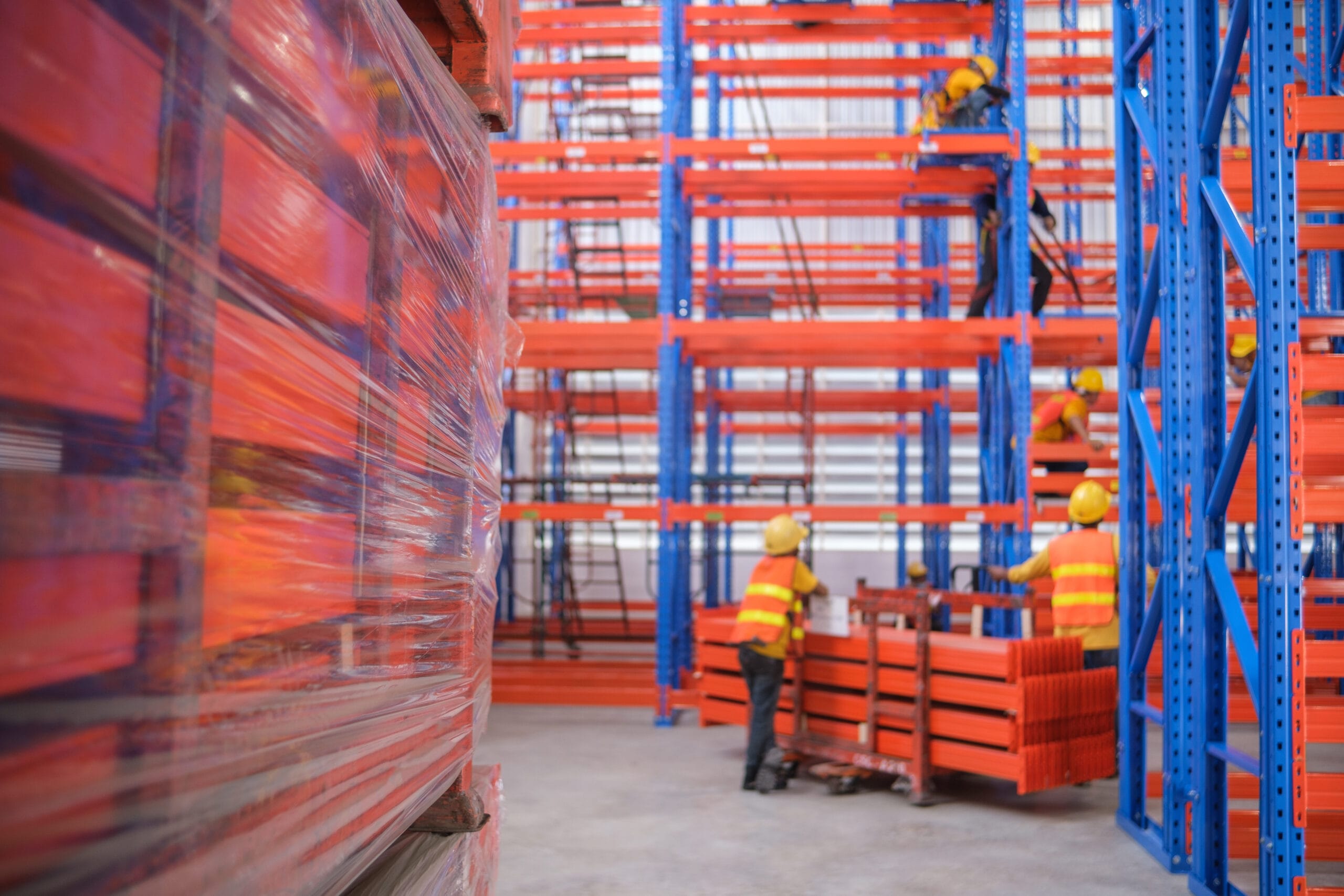

What’s included in a professional pallet rack installation service?

Accepted Answer

Warehouse Cubed’s professional pallet rack installation is a turnkey service that covers everything from pre-installation site evaluation and engineered layout drawings through permitting, delivery, and certified assembly. Crews anchor, level, and load-test every bay, add required safety accessories, label capacities, clean the site, and hand off inspection documents and training.

Every Warehouse Cubed pallet rack installation starts with an on-site consultation led by our warehouse consulting services team. We survey floor conditions, ceiling clearances, sprinkler lines, and product profiles before producing an optimized warehouse layout design that meets RMI, OSHA, and local building-code requirements. Our project managers secure any required permits, coordinate deliveries, and stage material handling equipment so installation never disrupts production.

Certified installers then assemble uprights, beams, and decking, using laser leveling, seismic anchors, and torque-verified hardware to guarantee structural integrity. We integrate accessories (such as row spacers, column protectors, guardrails, and aisle signage) to boost warehouse safety and guard against forklift impacts. When needed, our crew ties new pallet racking systems into existing conveyor systems or automated storage and retrieval systems, ensuring a smooth path toward future warehouse automation solutions.

After assembly, we conduct a detailed rack safety audit, load-test critical bays, and apply capacity labels so your team always knows safe limits. A final walk-through provides operator training, maintenance tips, and a documentation packet with stamped drawings, inspection checklists, and warranty information. We finish by removing all packaging debris and returning the area to “ready-to-stock” condition.

The result is a fully compliant, high-density industrial storage solution that maximizes space, supports faster order fulfillment, and sets the foundation for ongoing distribution center optimization.

Question 22

What’s the best inspection cadence to maintain rack safety in a warehouse?

Accepted Answer

Inspect racks on three levels: quick daily walk-throughs by forklift operators, detailed weekly visual checks by your safety team, and a certified annual audit by professionals like Warehouse Cubed. This cadence catches impact damage early, documents compliance, and keeps your storage system safe and productive.

Regular pallet racking inspections are the backbone of warehouse safety and efficiency. Warehouse Cubed recommends a three-tier program that balances speed, detail, and expert review.

1. Daily operator scan (1–2 minutes per aisle). Train lift drivers to look for obvious bends, missing anchors, or loose beams as part of their normal route. They mark issues on a simple checklist or mobile app before damage grows.

2. Weekly safety team walk-through (30–60 minutes). Your in-house facility or safety manager reviews every upright, brace, and beam at eye-level and ground-level. They verify load plaques, rack labels, and aisle clearances while capturing photos for your safety log.

3. Annual professional audit. Once each year (twice if you have high-volume or freezer operations) schedule a certified rack inspection from Warehouse Cubed. Our warehouse safety audits follow ANSI MH16.1/RMI guidelines, use laser measuring tools, and deliver a color-coded report that lists needed pallet rack repairs, capacity upgrades, and protective guarding.

This cadence detects impact damage early, supports OSHA compliance, and preserves the engineered capacity of your material handling systems. Partnering with Warehouse Cubed means faster repairs, replacement parts from top brands like Interlake Mecalux and Unarco, and expert guidance on future warehouse optimization or automation projects.

Question 23

What’s the best strategy to reclaim vertical space safely in a low-clearance building?

Accepted Answer

The safest way to reclaim vertical space in a low-clearance warehouse is to install a custom, low-profile mezzanine or rack-supported catwalk system designed to fit beneath roof obstructions, combined with narrow-aisle pallet racking and a full safety package—guardrails, gates, signage, and a code-compliant sprinkler plan.

Start with a professional warehouse safety audit and layout review. Warehouse Cubed’s warehouse optimization team measures clear height, column spacing, sprinklers, and egress routes, then models options in 3-D CAD. In low-ceiling buildings (12–18 ft) we usually specify a low-profile structural or rack-supported mezzanine that adds a second level for light pick, packing, or small-parts storage while preserving forklift clearance below. See our Mezzanines page for examples. Using bar-grating and slim 4-in. beams keeps deck depth to a minimum, gaining up to 85 lb/ft² live load without raising the roof.

Under the platform we re-slot inventory in selective or push-back pallet racking sized exactly to the remaining headroom. Narrow-aisle reach trucks or pallet shuttles improve cube utilization by up to 40 %. Where ceiling height is under 16 ft, vertical lift modules or horizontal carousels deliver automated storage and retrieval systems (AS/RS) that hold thousands of SKUs in a 10 × 20 ft footprint.

Every mezzanine ships with OSHA-rated guardrails, self-closing pallet gates, kick-plates, and clearly posted capacity signs; optional VRC material lifts eliminate manual carrying. Our material handling systems integration crew installs the structure over a weekend so you avoid long shutdowns, and we provide ongoing pallet rack repair inspections to keep it safe. Result: more pick faces, safer traffic flow, and a fast ROI without expanding your building.

Question 24

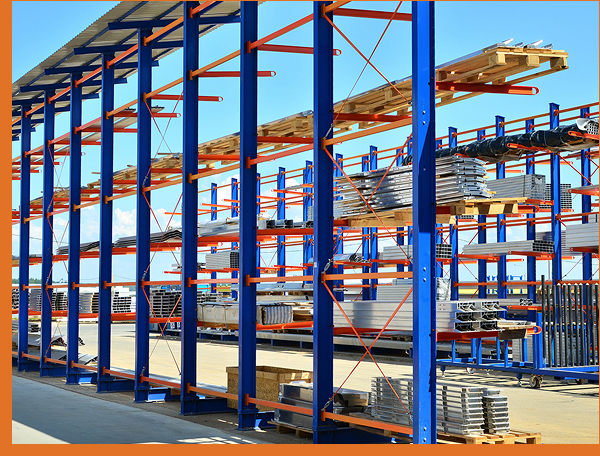

What’s the safest way to store heavy dies, molds, or steel bar?

Accepted Answer

The safest way is to place dies, molds, and steel bar on purpose-built heavy-duty racks (roll-out die shelving for tooling and structural cantilever racks for long bar stock) rated for the load, anchored to the floor, guarded, labeled, and inspected regularly. Warehouse Cubed designs, installs, and maintains these systems.

Heavy tooling and bar stock are best kept on storage that is built for concentrated loads and easy, controlled access.

1. Roll-out die shelving – Each shelf slides out like a drawer, so a crane or forklift can lift the die straight up instead of reaching into a rack. This prevents pinch points, reduces mast impact, and keeps the center of gravity low. Warehouse Cubed supplies roll-out shelves rated to well over 10,000 lb per level and anchors them with seismic-approved hardware.

2. Structural cantilever racks – For long steel bar or pipe, a column-free front lets operators load from the aisle without damaging uprights. Arms are adjustable and can be fitted with safety lips or nets to stop accidental roll-offs. Our cantilever systems are engineered through our warehouse layout design process to match bar length, weight, and lift-truck aisle width.

3. Preventive protection – Combining these industrial storage solutions with rack guards, floor line-striping, and routine warehouse safety audits keeps people and product safe. If impact occurs, our pallet rack repair kits restore capacity quickly.

Because every facility is different, our warehouse consulting services begin with an on-site assessment and CAD drawings that optimize clear heights, material flow, and automation potential. We integrate conveying, AS/RS, or mezzanines as needed, delivering a turnkey material handling system that raises throughput while meeting OSHA and RMI standards. This warehouse optimization approach reduces handling time and labor risk.

Question 25

When does pallet racking require a permit, and what is considered high-piled storage?

Accepted Answer

Most jurisdictions require a building permit once fixed pallet racking exceeds roughly 8 ft (some limit is 5 ft 9 in) or anchors to the slab, and a fire-department “high-pile” permit when storage tops 12 ft (6 ft for high-hazard goods) in areas over 500 sq ft. Always checks local codes (or work with a consultant who checks local codes) before ordering equipment.

Warehouse consulting services and warehouse automation solutions from Warehouse Cubed start by confirming local code triggers. Under the International Building Code (IBC) most municipalities ask for a building permit, stamped calculations, and seismic anchoring details whenever a fixed pallet racking system rises above 8 feet—or any time it is anchored to the slab or building frame. Some city amendments, such as the common 5 ft 9 in exemption, still demand permits for taller sections or mixed-use areas. Our warehouse optimization team prepares PE-sealed drawings, load charts, and aisle layouts so approvals move smoothly and your project stays on schedule.

High-piled combustible storage rules come from the International Fire Code. Once the top of cartons, pallets, or racks exceeds 12 feet (only 6 feet for Group A plastics, rubber tires, idle pallets, or other high-hazard goods) and the designated area is larger than 500 square feet, a separate operational permit, sprinkler review, and often smoke vents or draft curtains become mandatory. Fire marshals will also examine flue spaces, commodity classification, and egress widths.

Warehouse Cubed streamlines the entire process: material handling systems integration, pallet rack repair and installation, warehouse safety audits, and the documentation fire officials expect. We can even pair new rack with conveyor systems or automated storage and retrieval systems to boost throughput while keeping your facility compliant and safe. If you’re planning to store product above eight feet, let our team confirm permit requirements before the first upright is set.

Question 26

When should a rack system be repaired and when should it be replaced?

Accepted Answer

Repair a rack system when damage is localized (bent uprights, minor beam dents, or anchor issues) but the frame geometry and load ratings can be restored with certified rack repair kits. Replace the system when structural damage is widespread, corrosion or fatigue compromise capacity, layout no longer meets current codes, or the design cannot support future throughput and automation.

Deciding between pallet rack repair and full replacement starts with a documented warehouse safety audit. Warehouse Cubed’s certified inspectors evaluate damage class, load charts and RMI compliance. If impact or over-loading has only distorted the first 36 inches of an upright, a welded steel Rack Repair Kit can return the column to “better-than-new” strength in under an hour and without unloading product. This low-cost fix keeps your pallet racking system in service, reduces downtime, and can be combined with protective guarding to prevent repeat hits.

Replacement is the safer, more economical choice when any of the following apply:

Multiple uprights or horizontal braces are twisted, buckled, or missing.
Rust, chemical corrosion, or fatigue cracks appear along the full frame height.
Beams sag more than 1/180 of their span or connectors are deformed.
The existing configuration no longer supports new SKU weights, seismic codes, or planned warehouse automation solutions such as conveyor pick tunnels or automated storage and retrieval systems (AS/RS).

In these cases our warehouse consulting services team designs a fresh rack layout, integrates it with your material handling equipment, and stages installation around your shift schedule to preserve throughput. Whether you need a single upright repaired or an entirely new high-density system, Warehouse Cubed delivers turnkey warehouse optimization—from engineered drawings and permitting to final rack load labeling—so your distribution center stays safe, scalable, and ready for peak demand.

Question 27

Which rack system is best for high-turn full pallets vs. deep reserve storage?

Accepted Answer

For high-turn, full-pallet picking, a single-deep selective rack (or pallet flow when FIFO is critical) delivers the fastest access and simplest slotting. For deep reserve or bulk SKUs, density matters more than speed, so drive-in or 2–6-deep push-back racks maximize cubic capacity while reducing aisle count.

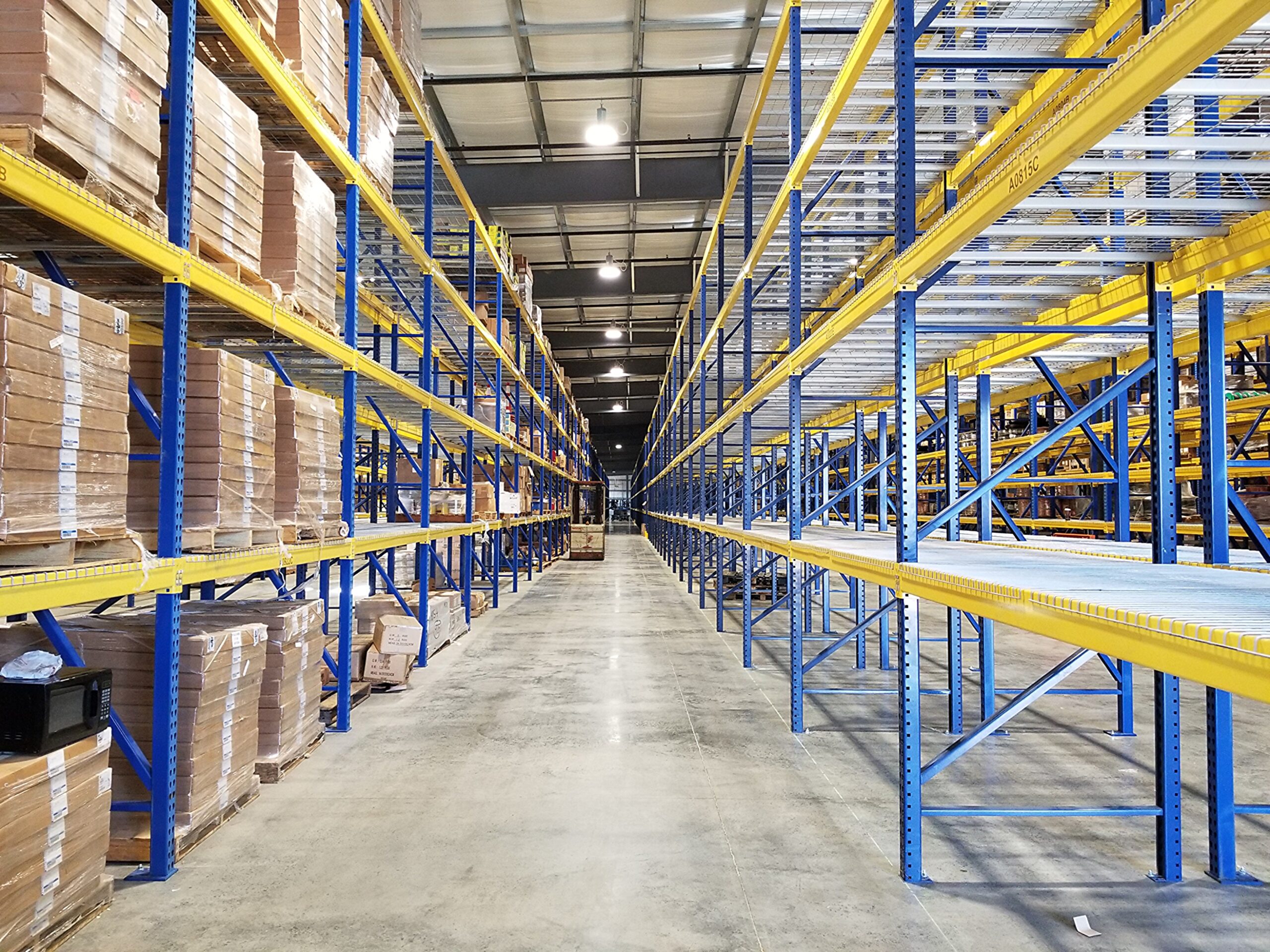

High-velocity pallet positions demand immediate, one-touch accessibility. Warehouse Cubed typically recommends single-deep selective pallet racking for these SKUs because every location faces the aisle, letting lift-truck drivers grab or replenish product in seconds without shuffling other loads. If you ship dated goods and need strict first-in/first-out rotation, our engineered pallet flow lanes add gravity rollers to keep the oldest pallet at the pick face while preserving the same quick pick cycle. Both options pair well with narrow-aisle lift trucks to boost pick density without sacrificing speed.

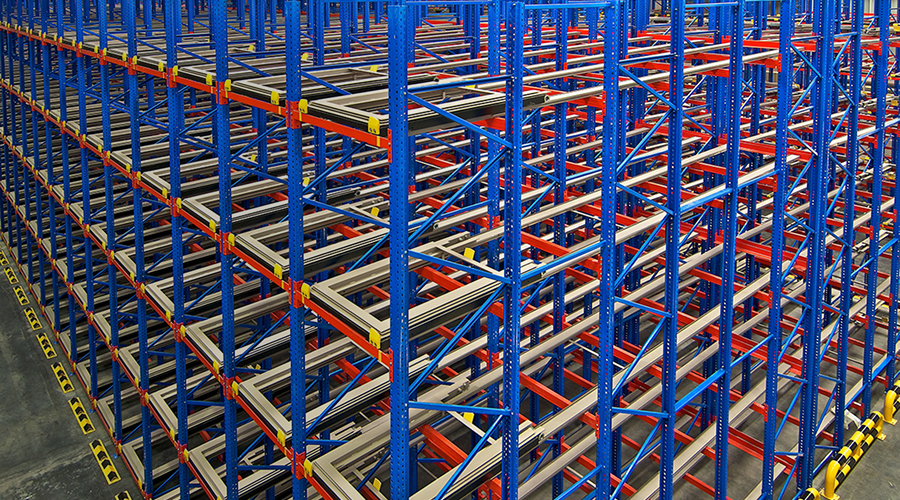

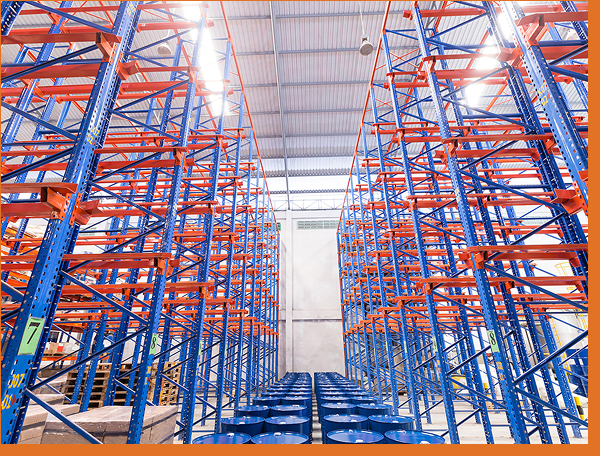

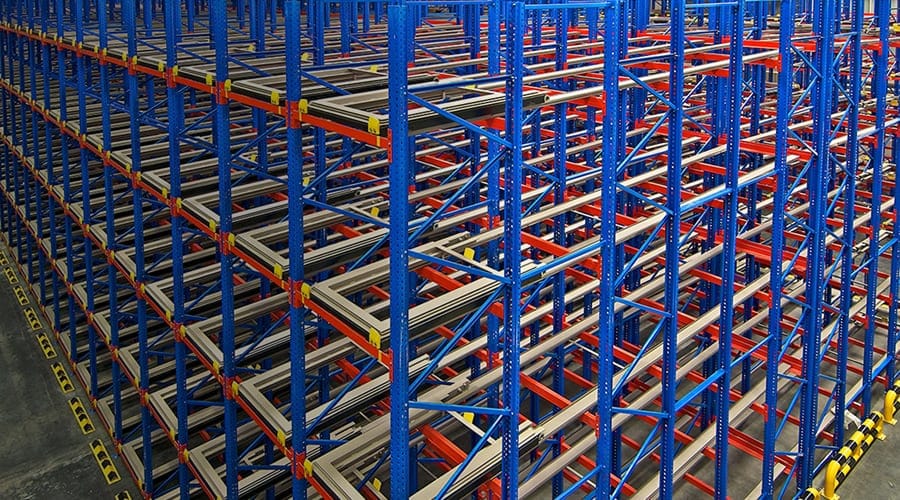

Reserve or slow-moving inventory calls for the opposite approach: maximum storage density at the lowest cost per pallet. Drive-in/drive-thru and 2- to 6-deep push-back racks condense up to 65 % more pallets in the same footprint by eliminating most access aisles. Push-back delivers last-in/first-out access and higher selectivity than drive-in, while drive-in offers the absolute lowest cost per position for large runs of a single SKU. Our warehouse consulting services use CAD-based layout design and capacity calculations to determine the ideal mix of high-turn and deep-reserve zones, integrating conveyors, AS/RS, or other material handling systems as needed.

Whether you operate an e-commerce fulfillment center or a 3PL, Warehouse Cubed’s turnkey pallet racking systems, installation, and ongoing rack repair keep your operation safe, flexible, and future-ready.

Maximize Your Storage with Pallet Rack Systems

Redefining Warehouse Storage

AWARD WINNING

SERVICE PROVIDER

Common Storage Challenges

Overcrowded or Underutilized Space

Risk of Damage or Stock Loss

Complex SKU Management

Frequent Reconfigurations

Pallet Racking and Warehouse Racking Types We Design and Install

New vs. Used Pallet Rack Systems

What You Can Expect with Used Pallet Racking

Step-by-Step Implementation

1. Initial Assessment & Goals

2. Design & Configuration

3. Material Procurement

4. Installation & Setup

5. Review & Ongoing Support

Core Features & Benefits

Advanced Construction

Modular Customization

Optimized Floor Space

Enhanced Safety

Why Partner with Warehouse Cubed?

Need New or Used Industrial Pallet Racks? Let’s Plan It and Install It

Ready to Optimize Your Facility?

Frequently Asked Questions
